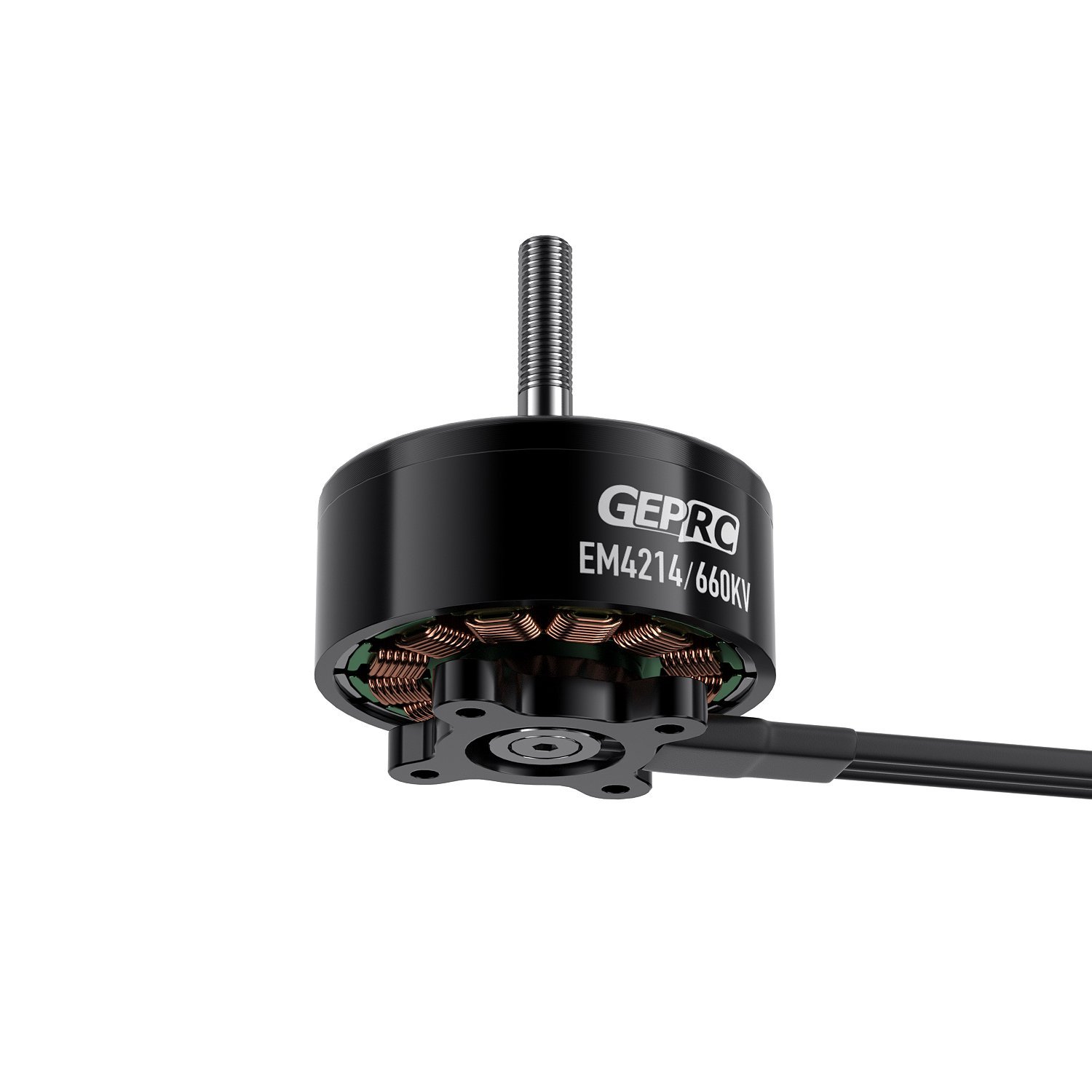

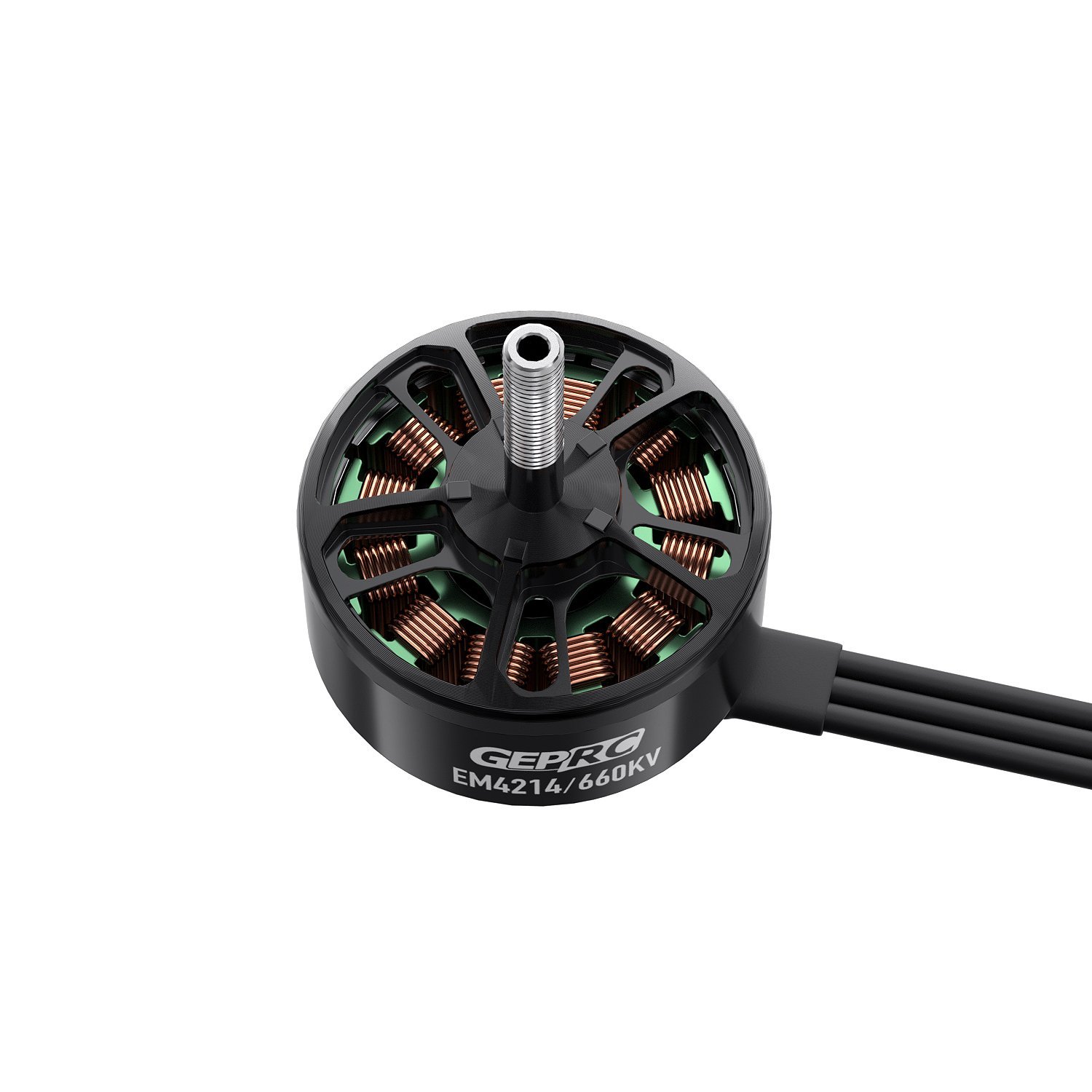

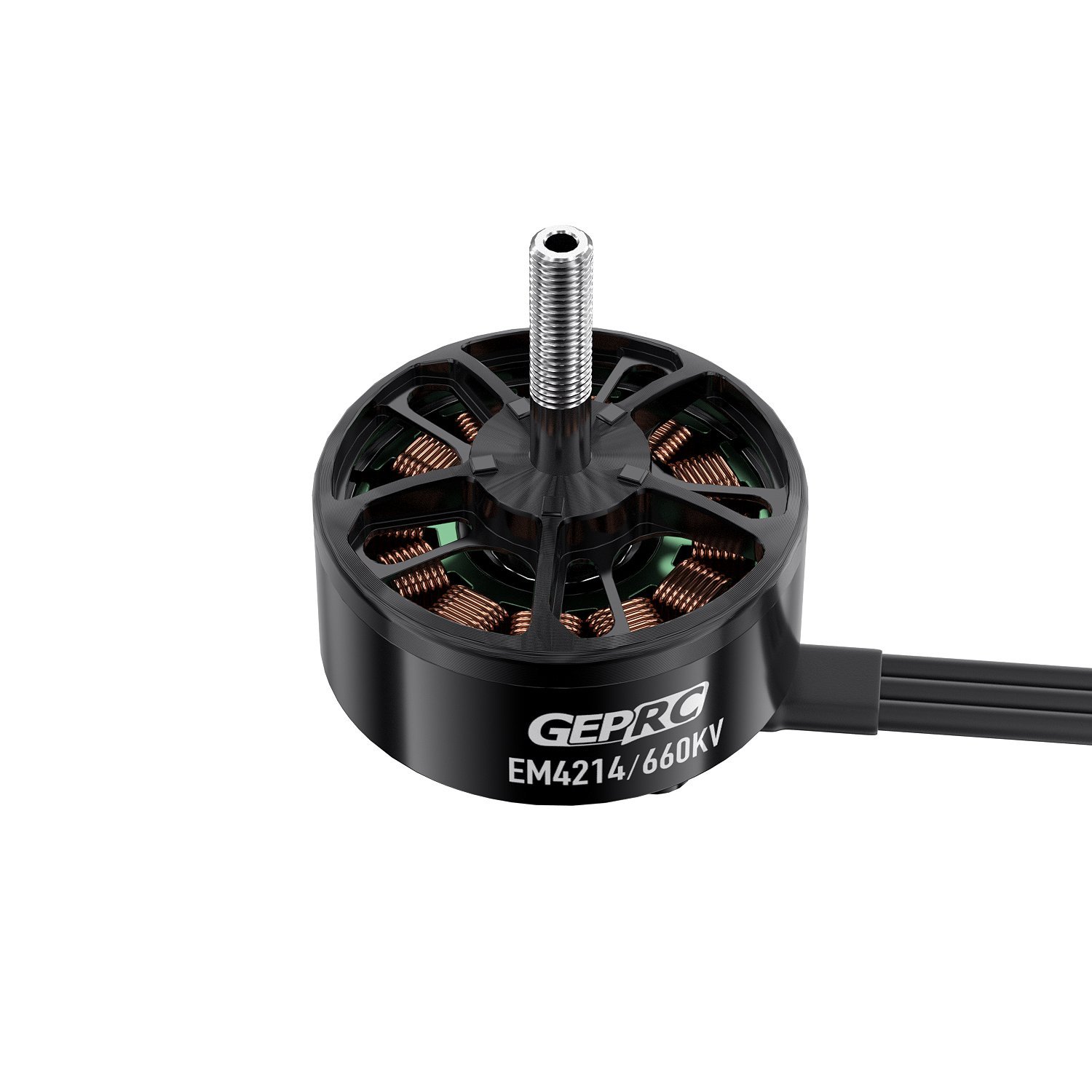

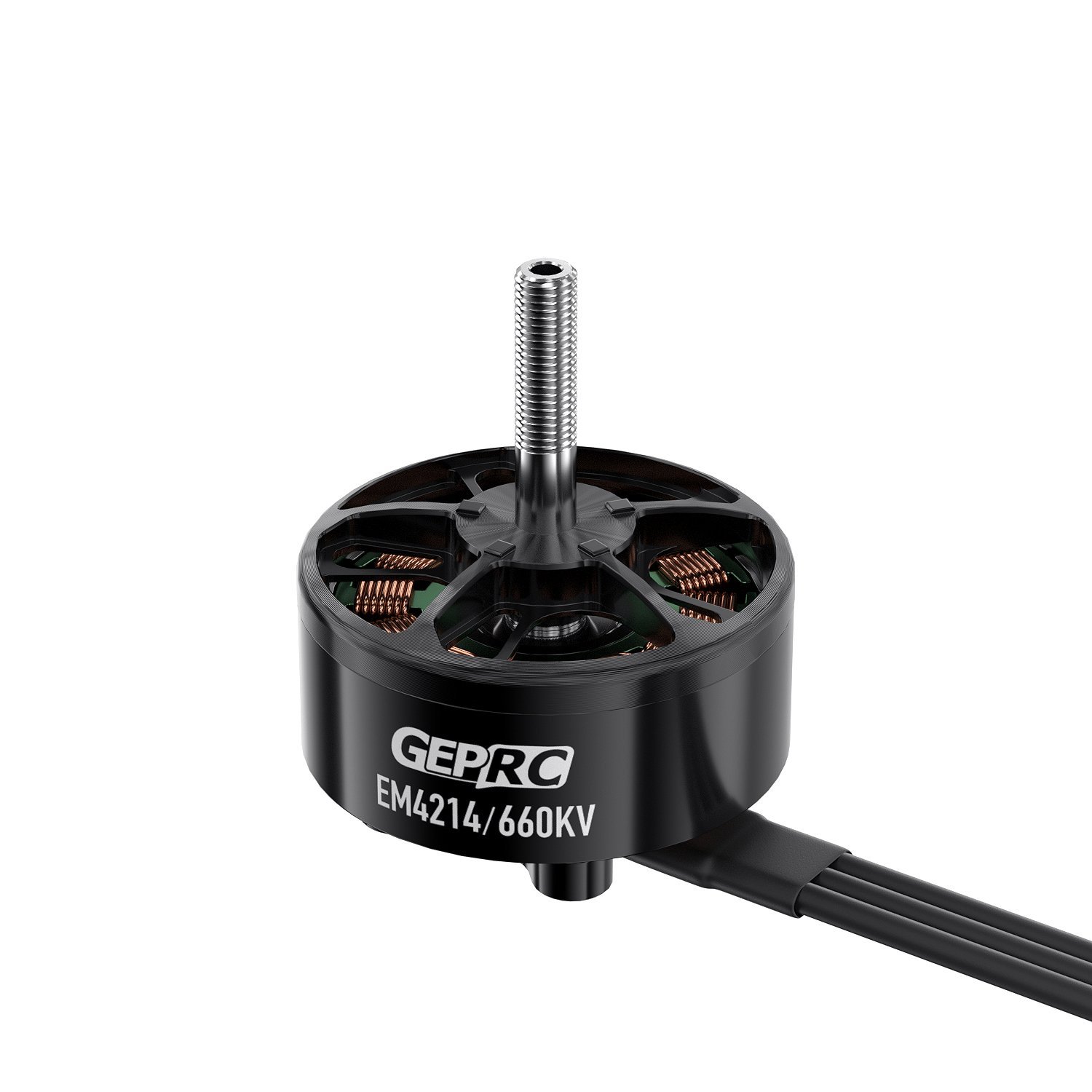

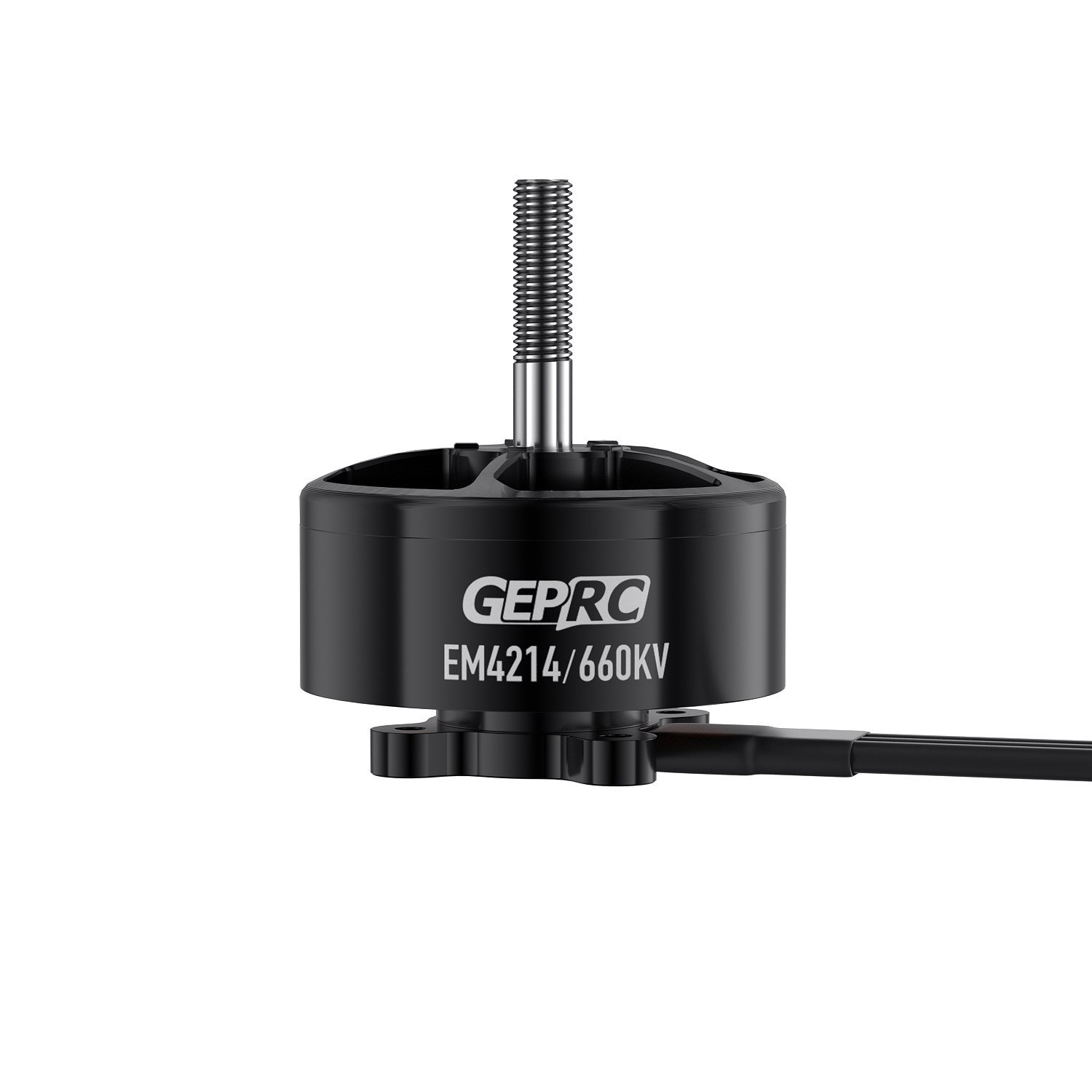

EM4214 660KV Motor – High Torque Long Range FPV Motor

The EM4214 660KV motor is a powerful brushless motor designed for long-range FPV drones and heavy-lift applications. It delivers high torque, efficient power output, and stable performance, making it ideal for 12–14 inch propeller setups.

Built for 6S LiPo batteries, the EM4214 660KV motor ensures smooth throttle response and consistent performance during extended flights. As a result, it is perfect for long-range missions, cinematic drones, and heavy payload builds.

High Power Design for Large Drone Builds

This motor features a high torque magnetic circuit with N52H magnets. In addition, the large 4214 stator size provides strong thrust and improved efficiency.

The high-strength M6 steel shaft and durable construction enhance reliability. Therefore, it can handle heavy loads and demanding flight conditions without performance loss.

Key Features

• Designed for long-range FPV drones
• 660KV rating for efficient power delivery
• High torque magnetic circuit design
• High-strength M6 steel shaft
• N52H magnets for improved performance
• 30 × 30 mm mounting pattern
• Compatible with 12–14 inch propellers

Technical Specifications

• Model: EM4214
• KV Rating: 660KV
• Max Power: 2120W
• Peak Current: 90A
• Internal Resistance: 25 mΩ
• Configuration: 12N14P
• Input Voltage: 6S LiPo (25.2V)
• Shaft Diameter: 6 mm
• Shaft Length: 25.5 mm
• Dimensions: 49 × 32.5 mm
• Weight: 246 g (with wire)

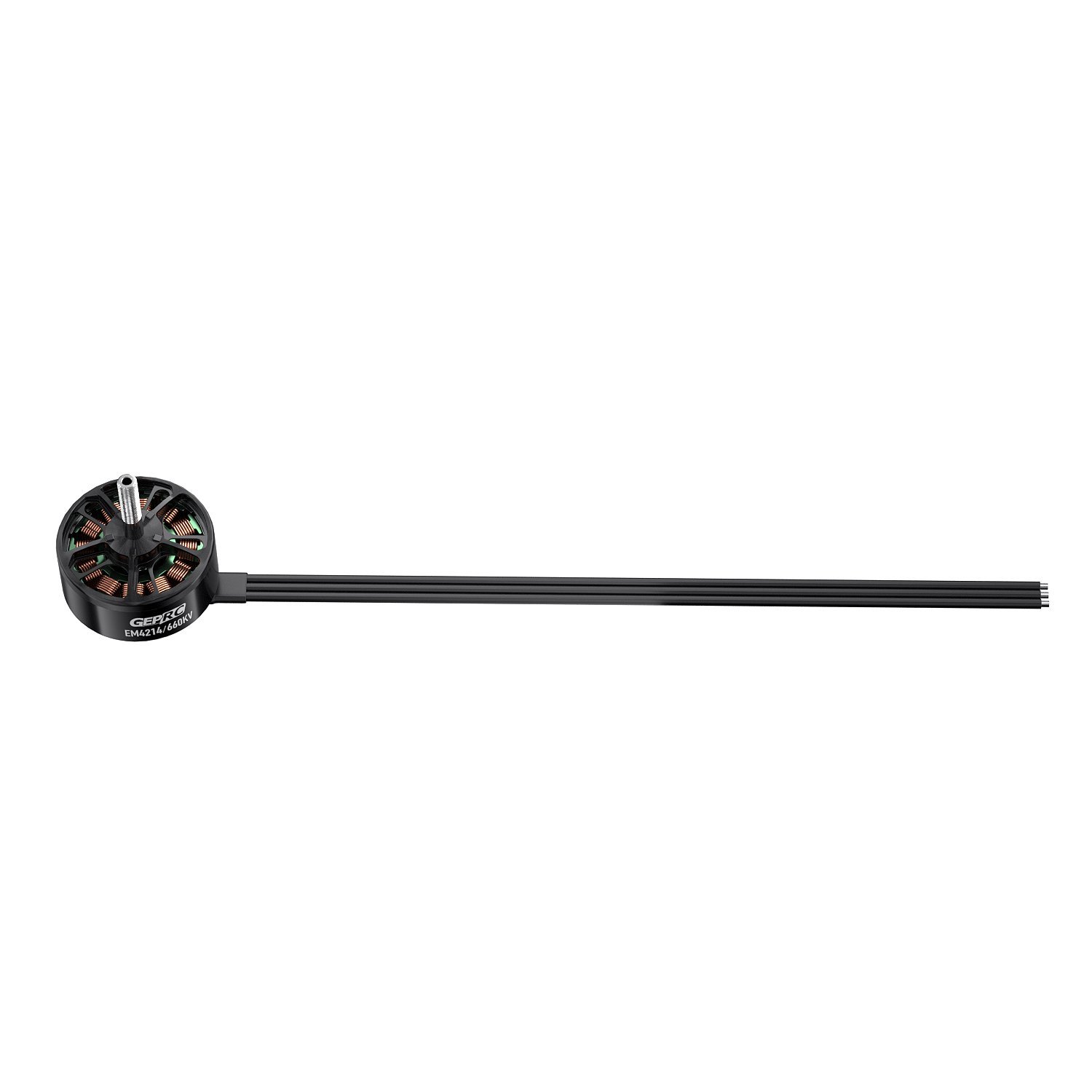

• Lead: 800 mm / 14AWG
• Recommended ESC: 80A – 100A
• Bearing Type: NMB

Applications

• Long-range FPV drones
• Heavy-lift UAV systems
• 12–14 inch quadcopters
• Cinematic drone builds
• Survey and mapping drones

---

Package Includes

• 1 × EM4214 660KV Motor
• 4 × M4 × 12 screws
• 1 × M6 anti-slip nut
